Company : Davi
Model : MCP
3-roll Angle Rolling Machine
DAVI’s MCP series consists of specialized solutions for bending metal sections (angle sections, beams, L, U, H shapes) with high precision and productivity. The series includes three-roller and double-clamping machines that allow the processing of angle sections with long lengths and bending requirements.
Main features
- The basic structure consists of three rolls with a fixed upper roll and two side rolls that move against the fixed upper roll, creating a bend in the cross-section.
- Planetary Guides technology on the side rolls allows for high bending force and small curvature diameter depending on the machine’s capacity.

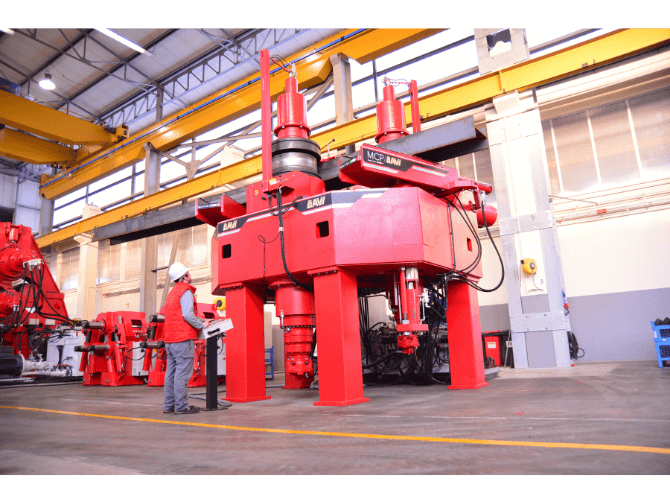

- The machine can be configured with horizontal axes (for smaller cross-sections) or vertical axes (for large/heavy cross-sections) to simplify the management of the angular cross-section.
Technology & Productivity
- MCP machines combine mechanical strength and cutting-edge technology to achieve high performance
- The double-clamping design allows for more continuous contact between the cross-section and the rollers, resulting in consistent accuracy in every cycle.
- Side rollers with Planetary Guides technology provide the required bending force, while the drive configuration ensures a small flat end (minimum straight cut).
- The choice of horizontal or vertical management axis ensures operational flexibility depending on the size of the cross-section and the material.
Scope of Application
The Angle Rolls series is designed for industrial applications such as:
- Manufacture of metal frames, metal building components, and support structures.

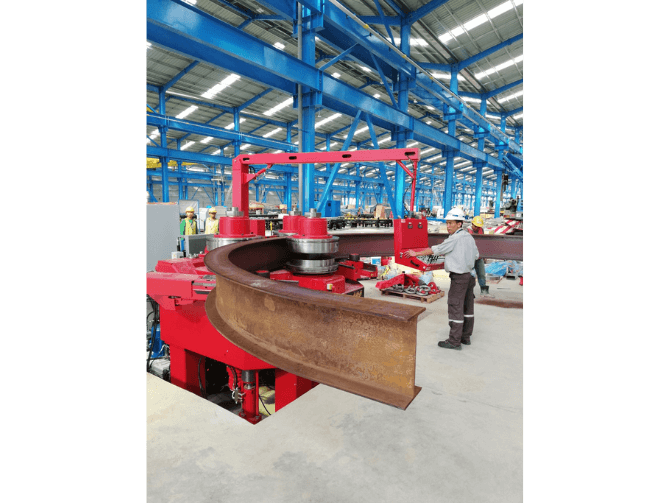

- Production of beams, L, U, and H sections with curved or bent parts.
- Applications in heavy construction where large sections, long lengths, and precision in bending corner pieces are required.
Technical Specifications
| Feature | Values / Range |
|---|---|
| Maximum sheet width | 6,000 mm – 12,000 mm (depending on model) |
| Maximum sheet thickness | 10 mm – 50 mm (depending on model and material) |
| Maximum bending angle | 180° (depending on cross-section geometry) |
| Rollers | Upper roller fixed, 2 side rollers movable, with Planetary Guides |
| Drive type | Servo motors / CNC control, fully automated |
| Bending preset | Yes — repeatability with small flat end |
| Machine weight | ~12,000 kg – 25,000 kg depending on length and model |
| Production capacity | High precision and repeatability for long lengths and thicknesses |
| Flexibility | Supports L, U, H cross-sections and other angular cross-sections |
