Company: Glory Star
Series: GS-CL

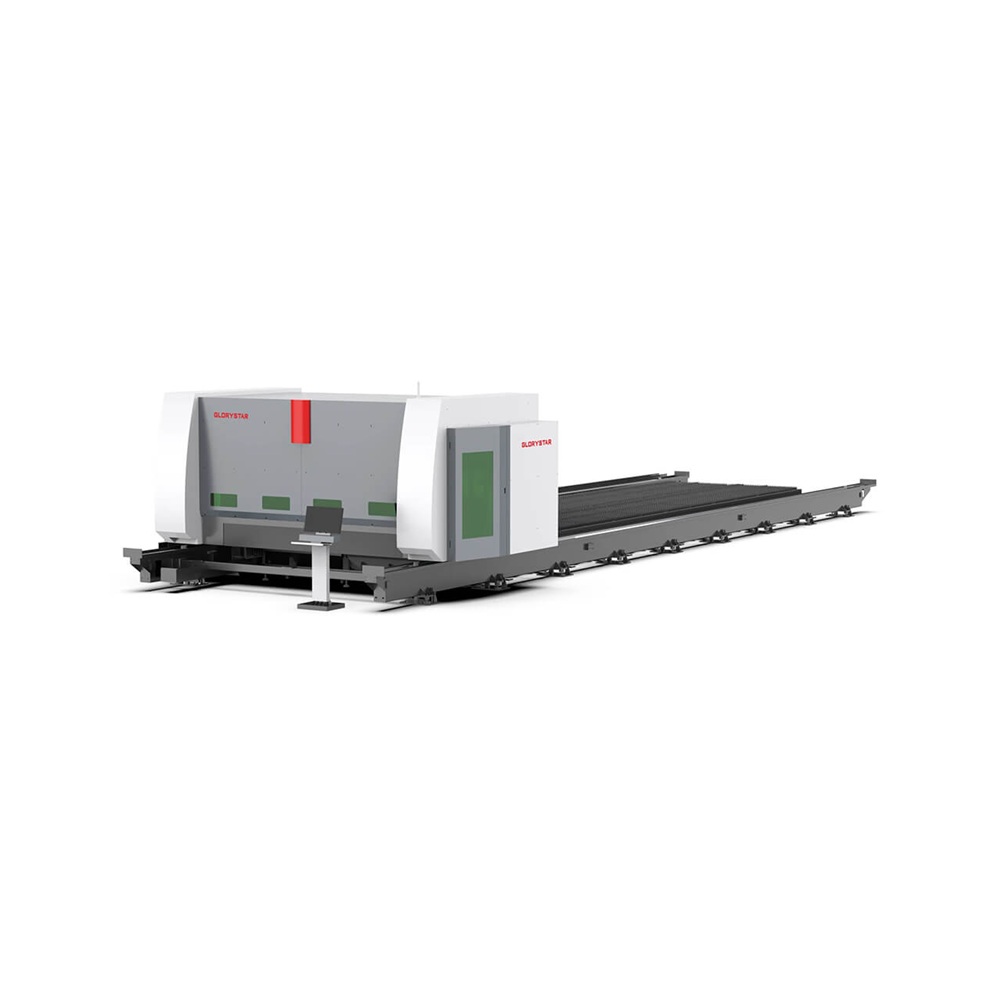

Fiber Laser cutting machine of “unlimited” length
Glorystar’s GS CL Series is a top-of-the-line solution for processing very large metal sheets — designed for production runs that require maximum table dimensions, cutting flexibility, and exceptional quality. The machine supports unlimited table length (modular segmented bed) and optional bevelling (bevel cutting up to ±45°), making it ideal for very large structures, cages, frames, special constructions and heavy industries.
Key advantages include:

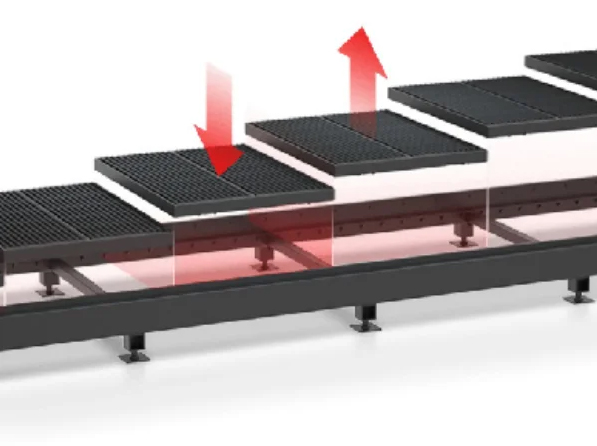

- Large structure with unlimited bed length adjustment for very large pieces.

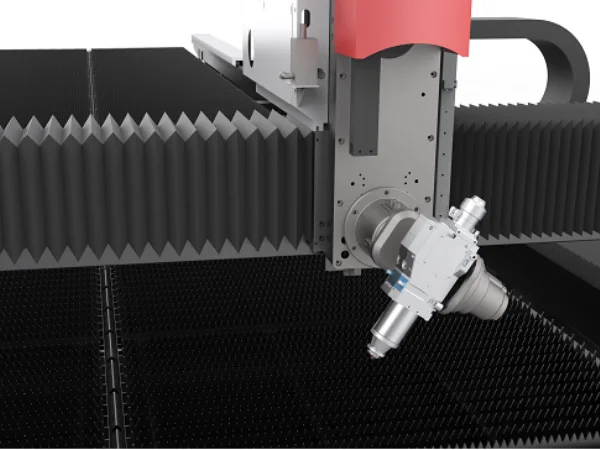

- Bevel cutting capability with AB axes for V, Y, X cuts up to ±45° — reducing machining steps.
- Exceptional positioning accuracy (X/Y ≤ 0.03 mm/m · repeatability ≤ ±0.02 mm) for high-quality production.
- Capability to process very large and heavy materials (e.g., lengths of 25,000 mm & table loads of up to tens of tons) — suitable for heavy industry.

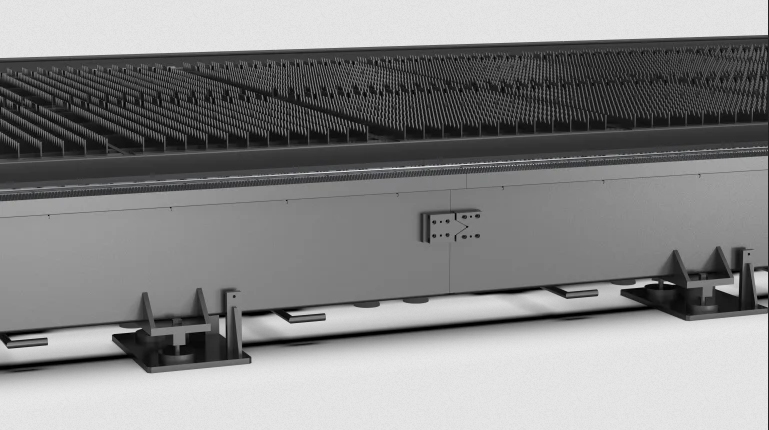

- Strict quality control and structural stability: dual drive hollow gantry bed, careful welding, thermal damping, modular tables.
The GS CL Series is suitable for companies that require extra-large machining dimensions, high precision, heavy construction, and full automation.
Τεχνικά Χαρακτηριστικά
- Table size / maximum material dimensions: The model comes in three table size options:
- 13000x3000mm
- 16000x3500mm
- 25000x3500mm
- Laser source: The model is available with six laser source options:
- 10KW
- 12KW
- 15KW
- 20KW
- 30KW
- 40KW
- X/Y positioning accuracy: ≤ 0.03 mm/m
- Repeat positioning accuracy: ≤ ±0.02 mm
- Positioning/movement speed: 50 m/min
- Maximum acceleration: Up to 1.2 G
- Power supply: AC 380 V, 50 Hz, 3P+N+PE
- Applicable materials: Stainless steel, carbon steel, aluminum, copper, brass, alloys, galvanized and other metal surfaces.
- Industrial Applications: Shipbuilding, steel structure construction, automotive industry, metal furniture, mechanical applications, special constructions.
